AmScope 40X-2500X LED Lab Binocular Compound Microscope with 3D-Stage + Microscope Book New LGF_PB24585

$256.99  $65.51




Product details:

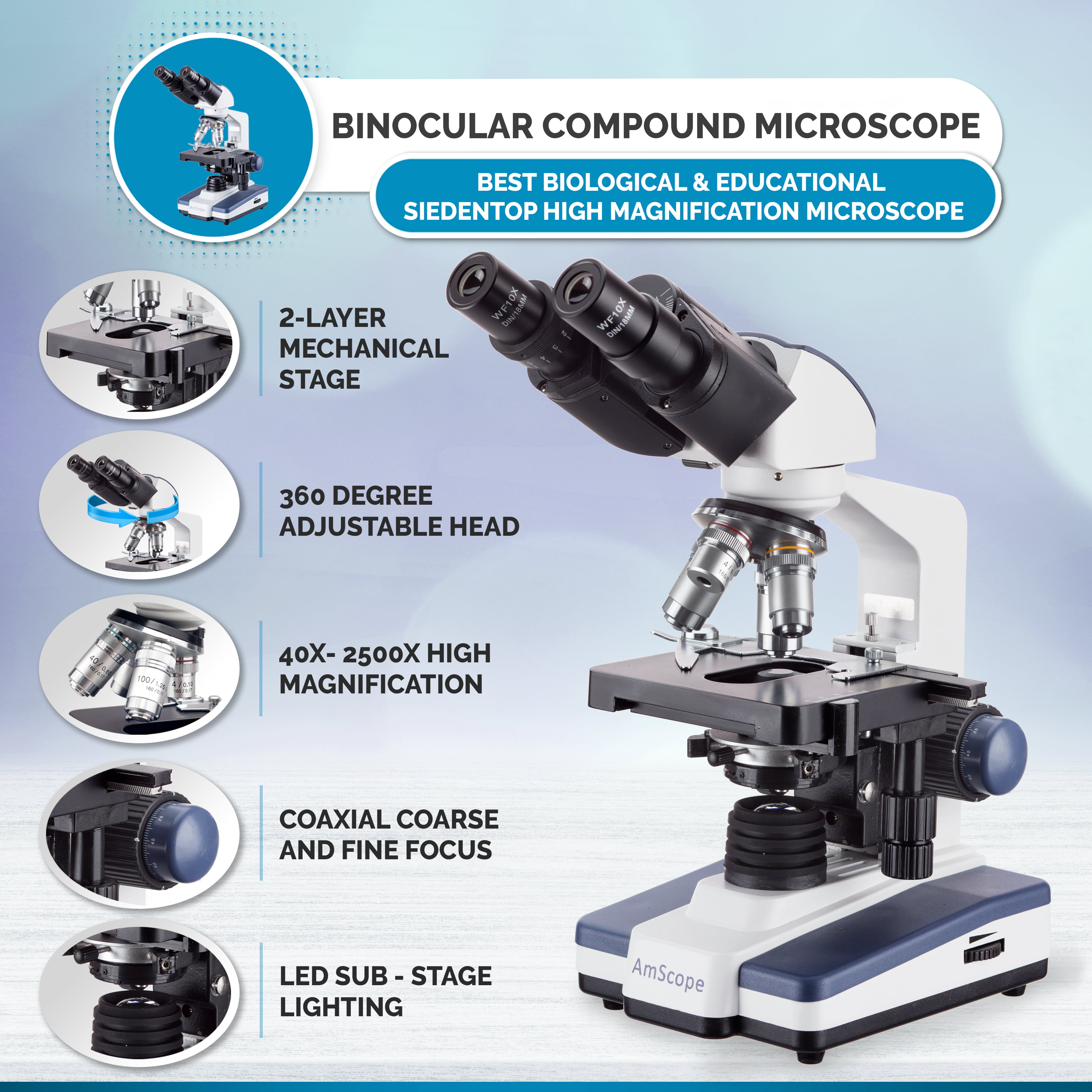

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, LED illumination system, and the microscope book - "The World of the Microscope". There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box with a retail value above $1,300.

Features :

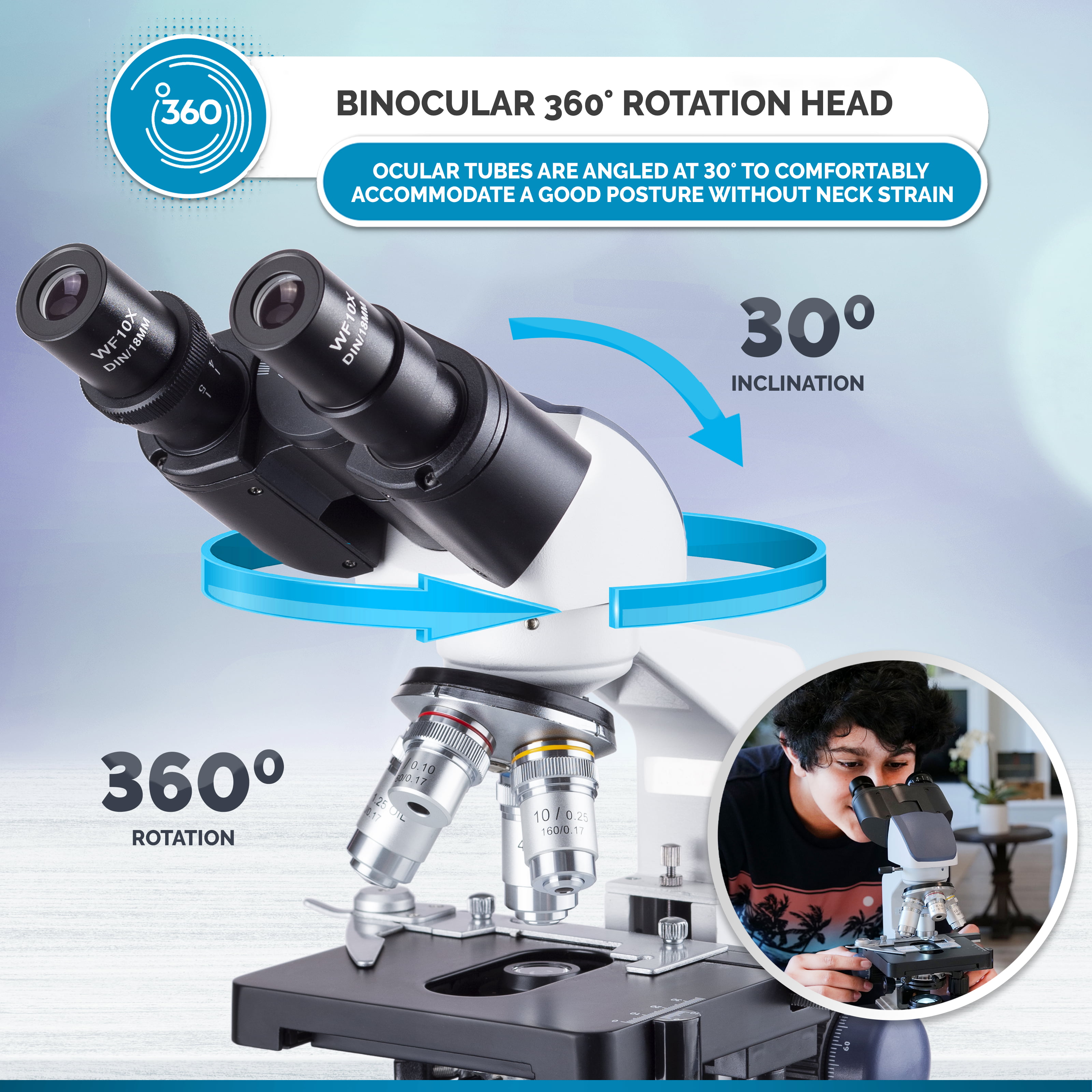

  • 30 degree inclined 360 degree swiveling Siedentopf binocular head
  • High quality precise optical glass elements
  • Easy to attach a microscope camera or digital imager
  • Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

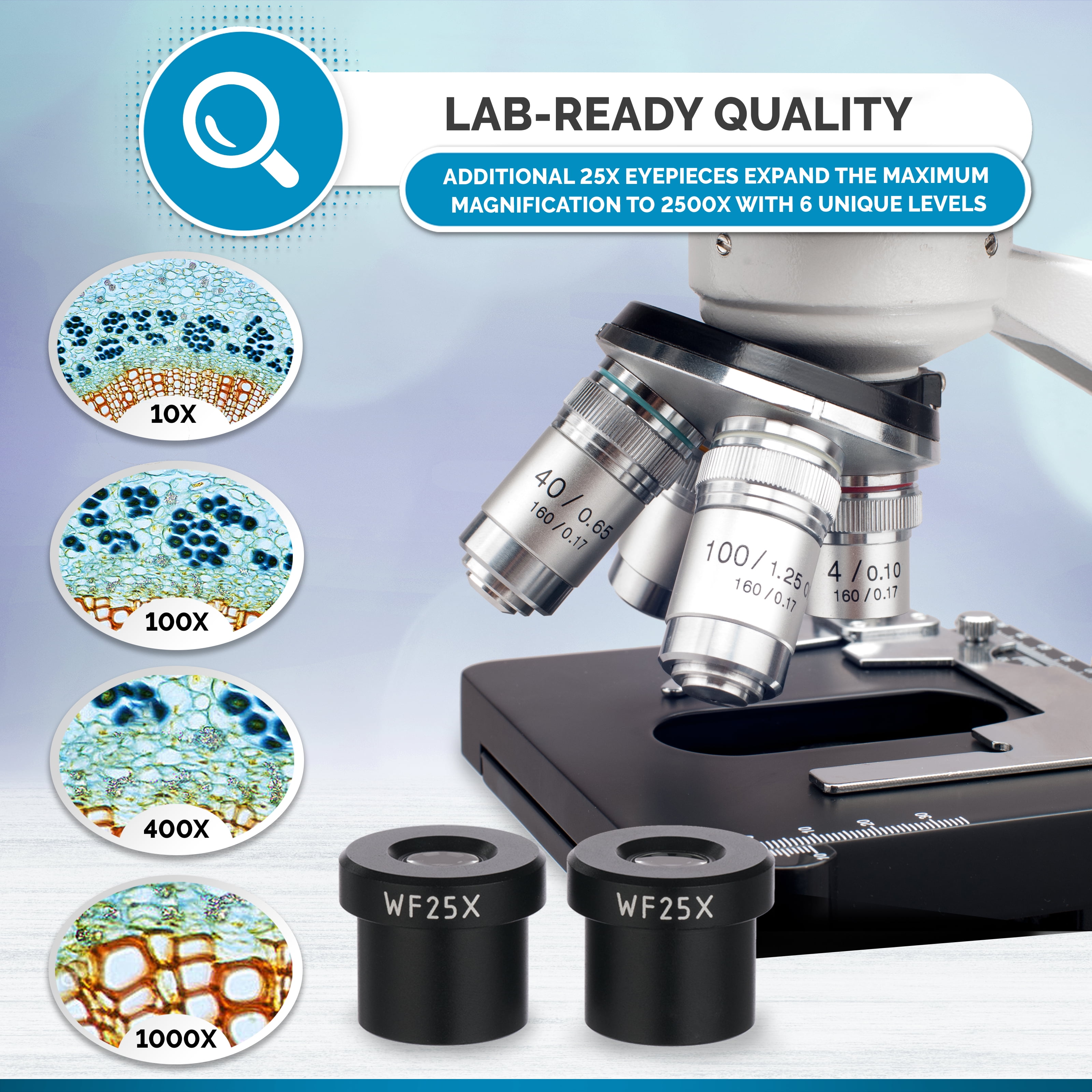

  • Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
  • Two pairs of widefield eyepieces: WF10X and WF25X
  • Adjustable interpupillary distance
  • Adjustable ocular diopter
  • Variable intensity illumination
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs are on both sides
  • Stage upward moving lock protects objectives and slides

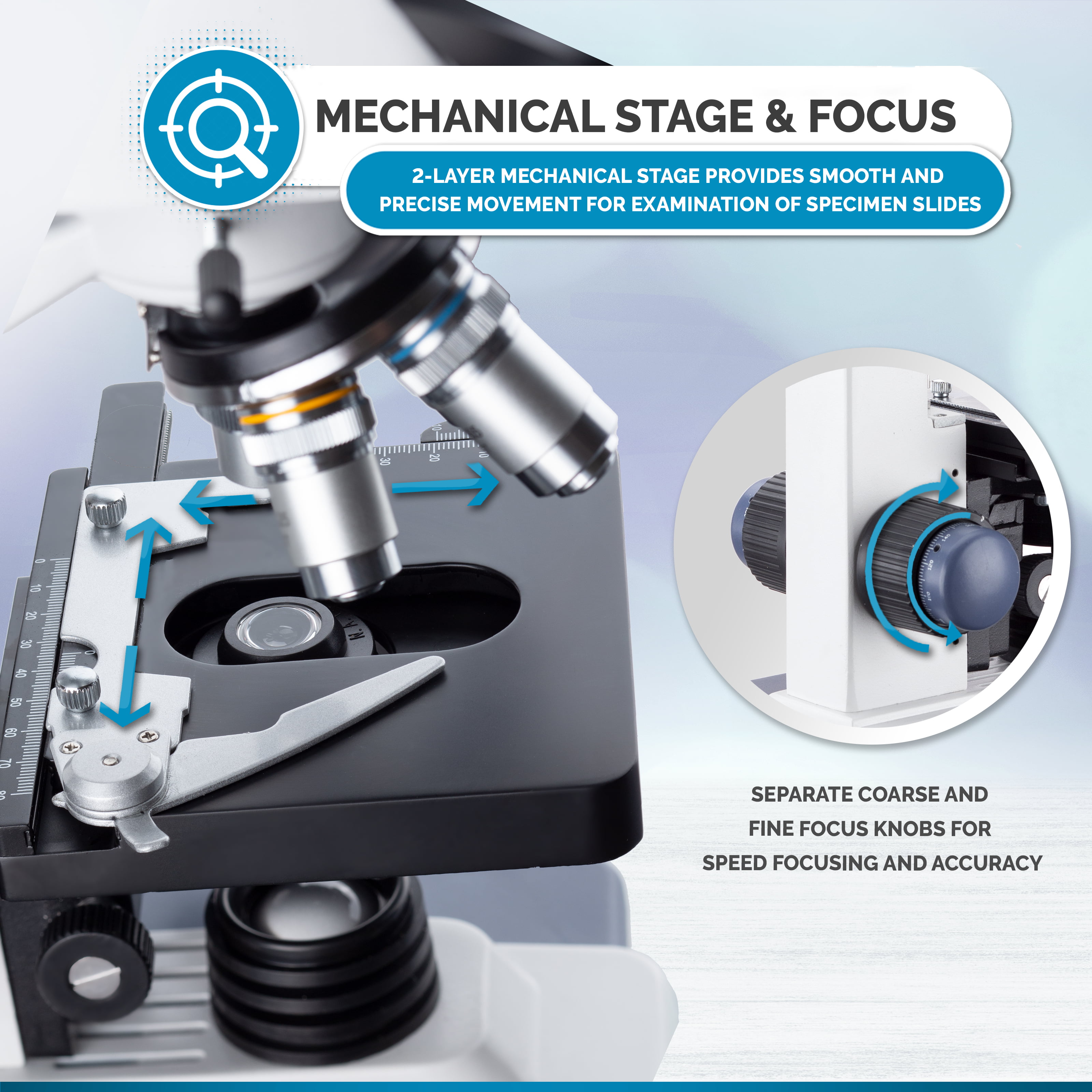

  • Stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Specifications :

  • Eyepieces: widefield, WF10X and WF25X
  • Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Head: 30 degree inclined 360 degree swiveling binocular
  • Interpupillary distance: 2-1/8 - 3-1/8 (53mm - 77mm)
  • Adjustable ocular diopter
  • Nosepiece: revolving quadruple
  • Mechanical Stage: 3-D double layer
  • - Size: 4-5/8 x 5 (118mm x 127mm)
  • - Travel Range (X-Y): 2-13/16 x 1-3/16 (70mm x 30mm)
  • Condenser: NA1.25 Abbe condenser with iris diaphragm

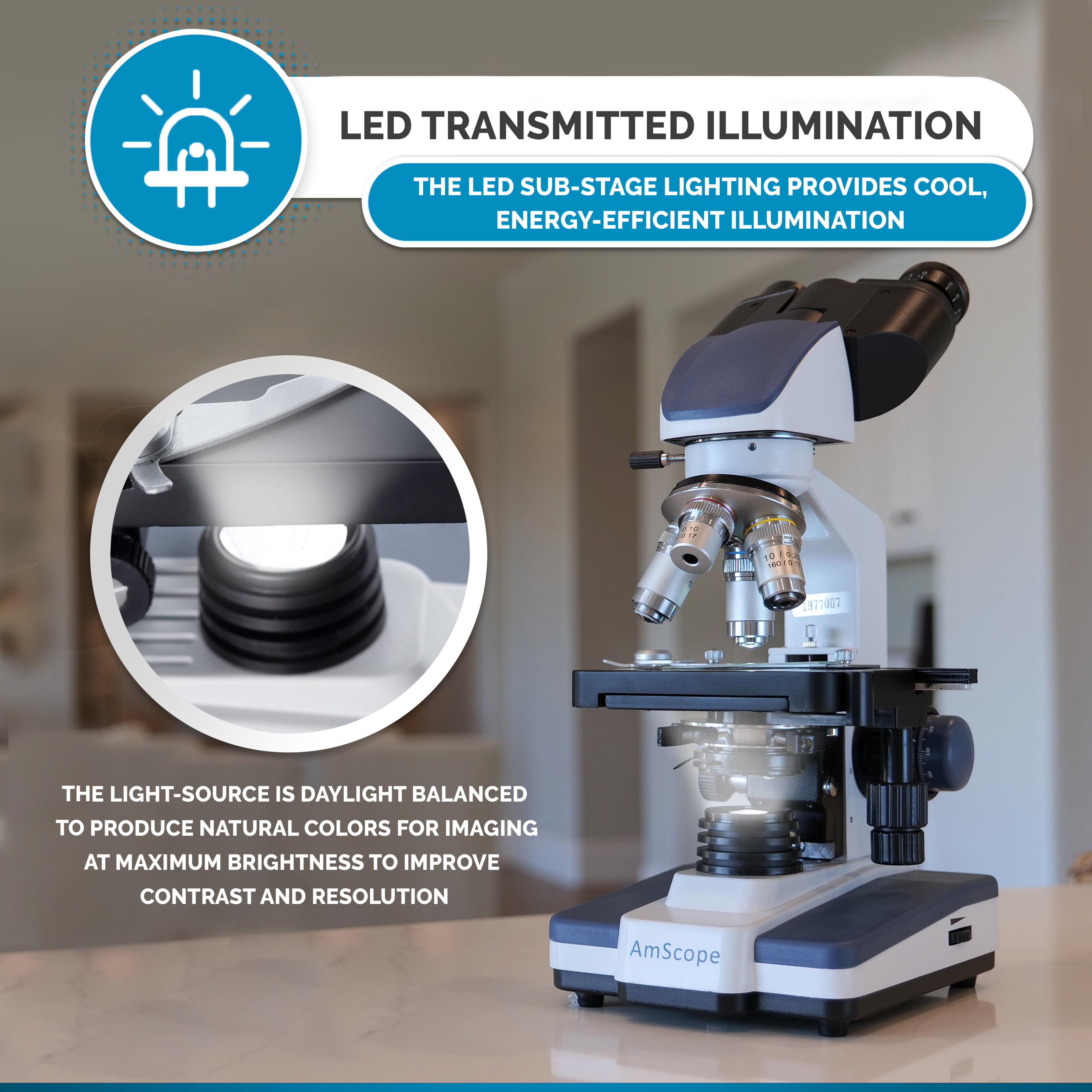

  • Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
  • Focusing: coaxial coarse & fine knobs on both sides
  • Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
  • Dimension: 11 x 7 x 13-3/4 (280mm x 178mm x 350mm)

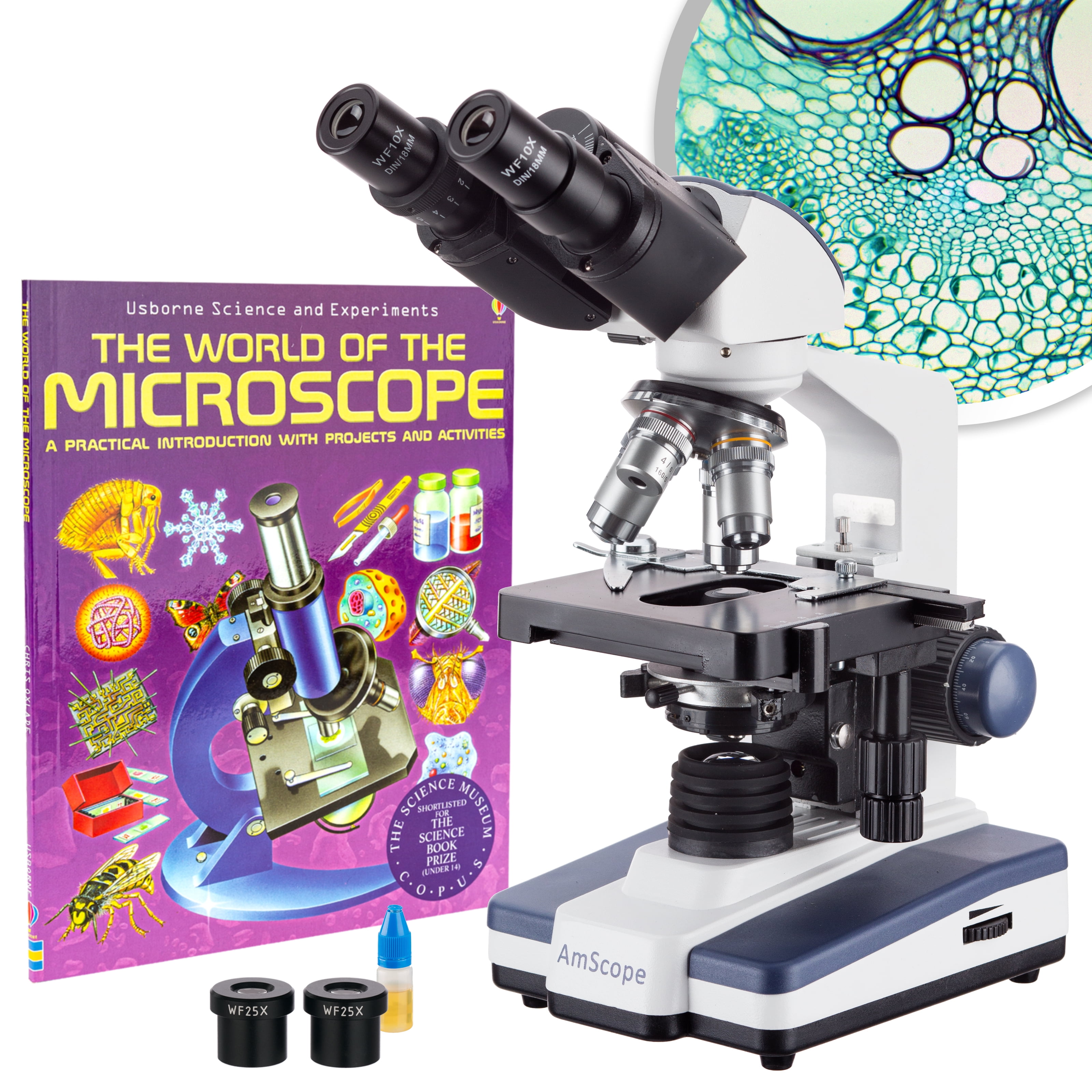

  • Packing List :

  • One Siedentopf Binocular Microscope Head
  • One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
  • Four DIN Standard Objectives, 4X, 10X, 40X and 100X
  • One Pair of Widefield 10X Eyepieces
  • One Pair of Widefield 25X Eyepieces
  • One Blue Color Filter
  • One Dust Cover
  • Sample Immersion Oil
  • User's Manual
  • One Microscope Book
  • Net weight: 10 lbs
  • Shipping weight: 12 lbs

  • Brand:AmScope
    Manufacturer Part Number:B120C-WM
    Condition:New
